The selection of materials for electric vehicle (EV) drive motor stator and rotor cores is one of the foundational steps in the manufacturing process, directly influencing the efficiency, power, and overall performance of the motor. The core material plays a critical role in conducting and channeling the magnetic field that drives the motor. Among the various materials used, high-grade electrical steel, especially silicon steel, stands out due to its superior magnetic properties. Silicon steel contains a higher percentage of silicon, which improves its magnetic permeability while reducing core losses such as eddy current and hysteresis losses. Eddy current losses are generated when the magnetic field within the core changes rapidly, creating circulating currents within the metal. These currents lead to energy dissipation in the form of heat, which reduces motor efficiency. By using silicon steel with low carbon content, we can minimize these losses, ensuring a high-performance stator and rotor core. Moreover, the material’s ability to handle high-frequency switching currents, as seen in electric motor applications, makes it an ideal choice. However, material selection doesn't only concern electrical properties; mechanical strength and thermal resistance are equally significant. The cores must endure high levels of mechanical stress due to the rotational forces generated within the motor, as well as the heat generated during prolonged use. At Zhejiang Jufeng Technology Co., Ltd., we carefully select materials that meet these dual needs for electrical efficiency and structural integrity. Our rigorous material testing ensures that we select only the best-quality steel that will provide maximum performance, while also considering factors such as material cost, availability, and environmental impact. Additionally, we have invested in advanced research to explore alternative materials that may offer even better performance characteristics, ensuring we stay at the forefront of technological advancements in the industry.

Stamping and cutting are critical steps in shaping the stator and rotor cores. During stamping, the core material—typically in the form of steel sheets—is precisely cut into thin laminations, which are then shaped to fit the desired specifications for the stator and rotor. The stamping process begins with the steel sheet being fed into a press machine equipped with high-precision dies. These dies are designed to cut the metal into the necessary shapes and sizes to form the laminations. Each lamination is made very thin, often less than 0.35 millimeters, to minimize eddy current losses and ensure maximum motor efficiency. The cutting of the laminations is done with such precision that any variation can negatively impact the core's magnetic performance. Therefore, our state-of-the-art stamping equipment at Zhejiang Jufeng Technology Co., Ltd. is engineered to ensure that every lamination is cut with extreme accuracy. This level of precision is essential to maintain consistent quality and performance across all core components. After the stamping process, the next step involves cutting the stamped sheets into specific shapes such as circular disks for the stator or rotor. These shapes are designed to fit precisely with the surrounding components of the motor assembly. The cutting process also requires highly accurate tools that ensure clean, smooth edges to prevent any issues during assembly or motor operation. Any jagged edges or defects can create air gaps or unevenness in the core, leading to inefficiencies or even motor failure. Moreover, lamination orientation is another critical aspect of the cutting process. Each lamination must be oriented in a specific direction to align with the motor’s magnetic field. This ensures that the core will conduct the magnetic flux efficiently, enhancing the motor's overall performance. Zhejiang Jufeng Technology Co., Ltd. uses advanced automated systems to guarantee the perfect alignment of laminations during the cutting and stacking processes. This meticulous attention to detail ensures that each stator and rotor core produced is not only consistent but also meets the stringent requirements of electric vehicle drive motors.

After the laminations have been stamped and cut to shape, the next step is to apply an insulation coating. Insulation is crucial because it prevents electrical contact between the layers of the laminations, which could lead to short circuits and energy losses. The insulation process involves applying a thin varnish-like coating to each lamination before they are stacked together to form the core. This coating is typically made of a resin-based compound that is both electrically insulating and resistant to high temperatures. The primary goal of the insulation is to provide a barrier that prevents any electrical current from passing between the layers of the core. The coating also protects the laminations from mechanical wear and corrosion, ensuring that the core remains intact over the lifespan of the motor. The insulation coating must be applied evenly across the surface of each lamination to ensure uniformity. Uneven coatings can lead to areas of weak insulation, which could result in electrical failures or reduced efficiency. At Zhejiang Jufeng Technology Co., Ltd., we use advanced insulation techniques such as vacuum impregnation, where the laminations are placed in a vacuum chamber and then impregnated with the insulating varnish. This ensures that the varnish penetrates all areas of the lamination, even the smallest gaps, providing consistent coverage. The insulating varnish is then cured in an oven to harden it, creating a durable, heat-resistant layer that will protect the core under high operating temperatures. Our focus on using high-quality, environmentally friendly insulation materials guarantees that the finished cores not only meet high electrical standards but also contribute to the overall reliability and safety of the electric motor.

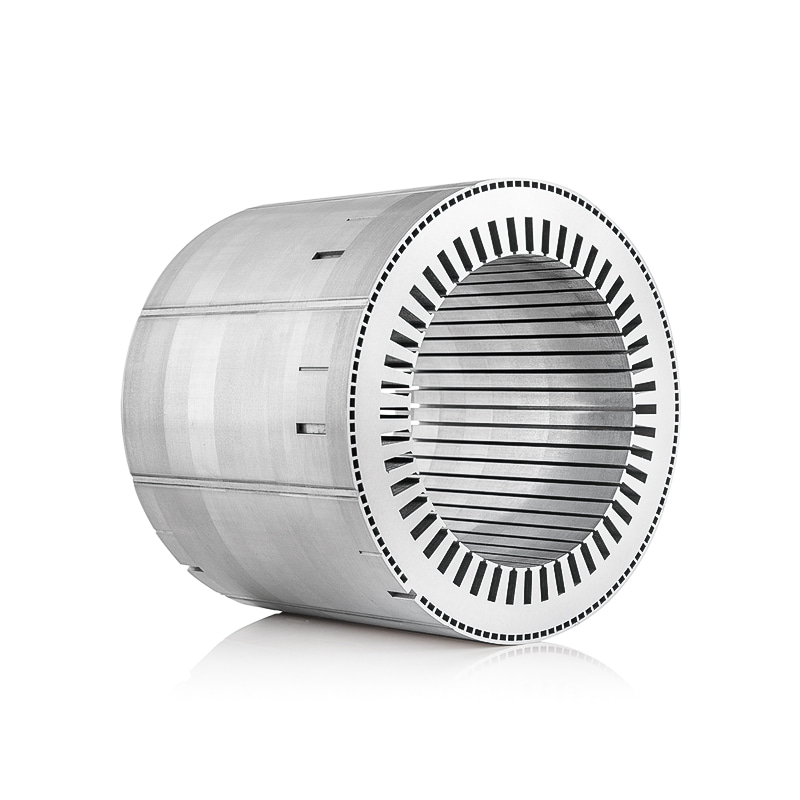

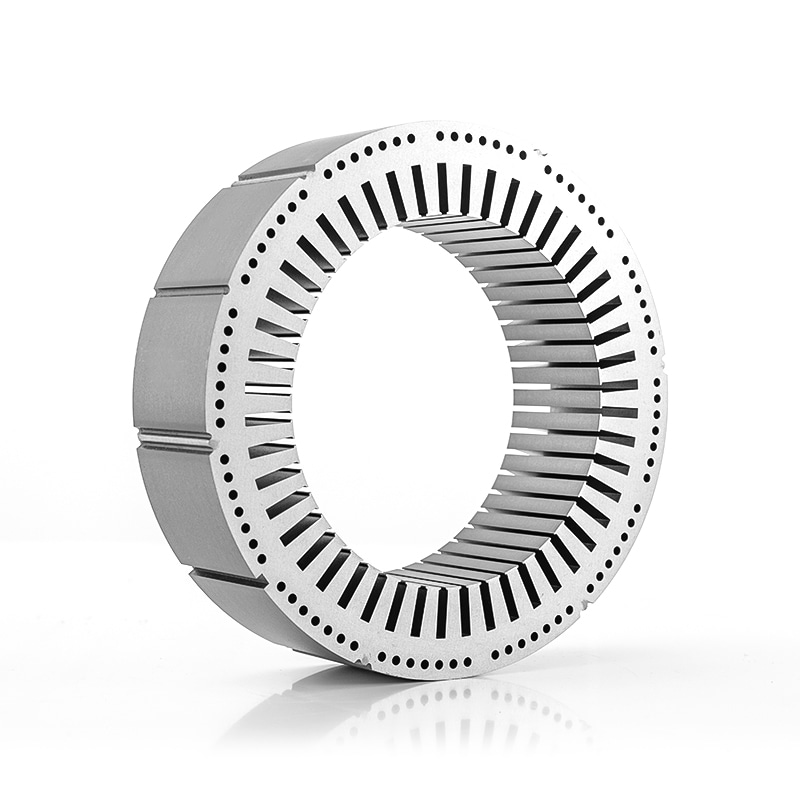

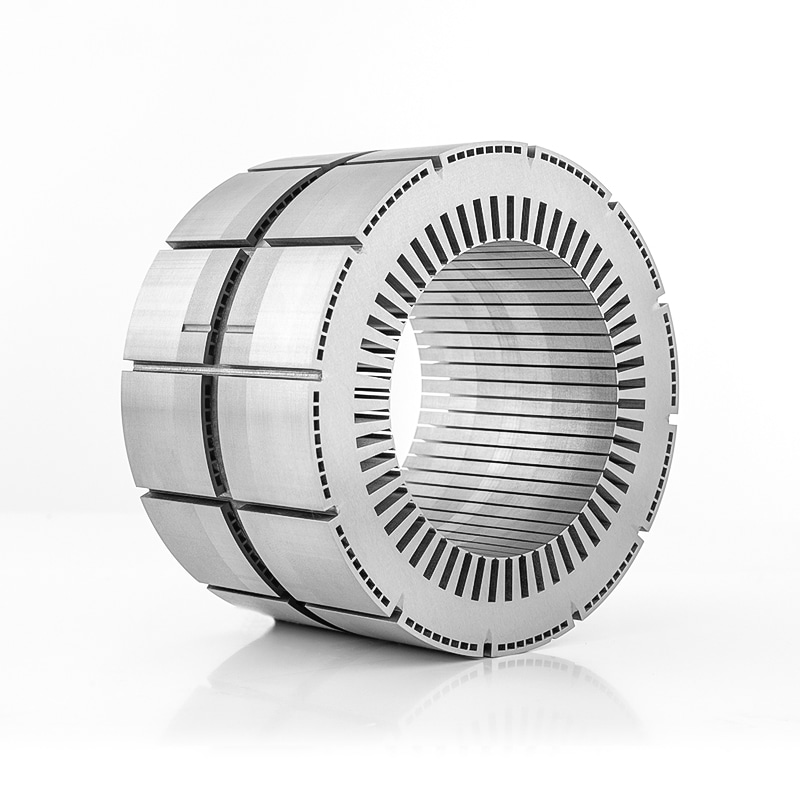

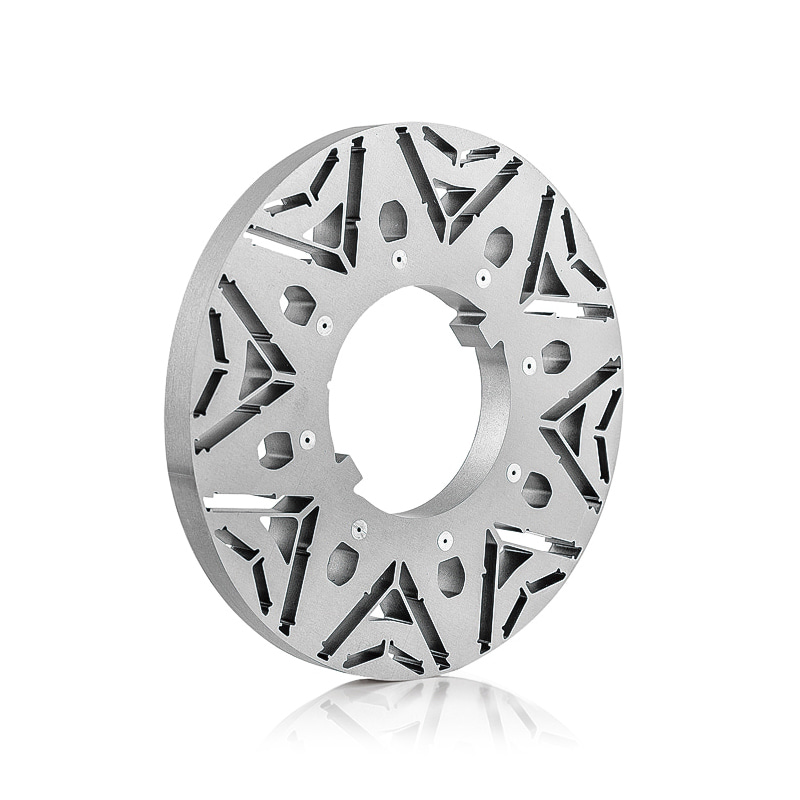

Once the individual laminations are insulated, they are ready to be stacked to form the final stator or rotor core. The lamination stacking process is one of the most critical steps in ensuring the core’s performance. The laminations are carefully stacked in a precise order, one on top of the other, with each layer perfectly aligned to minimize air gaps between them. These small air gaps can cause energy losses, so it is essential that the stacking process is executed with the utmost accuracy. The laminations are typically stacked in a cylindrical shape to form the stator or rotor, with each layer contributing to the overall magnetic flux that will drive the motor. The core’s mechanical strength is also an important consideration during stacking. The laminations must be tightly pressed together to ensure that the core can withstand the mechanical stresses generated during motor operation. This pressing process is done using a hydraulic press, which applies uniform pressure to the stack, ensuring that the laminations are securely held in place without causing any deformation or warping. Once the laminations are stacked and pressed, they are held together using a binding material or a mechanical clamp to keep the stack intact. This is particularly important for the rotor, where the high rotational speeds create significant centrifugal forces. At Zhejiang Jufeng Technology Co., Ltd., we use advanced equipment to automate the stacking and pressing process, ensuring that each core is assembled with precise alignment and optimal mechanical integrity. This results in stator and rotor cores that exhibit superior performance characteristics, including high magnetic flux density, low energy loss, and exceptional durability under stress.

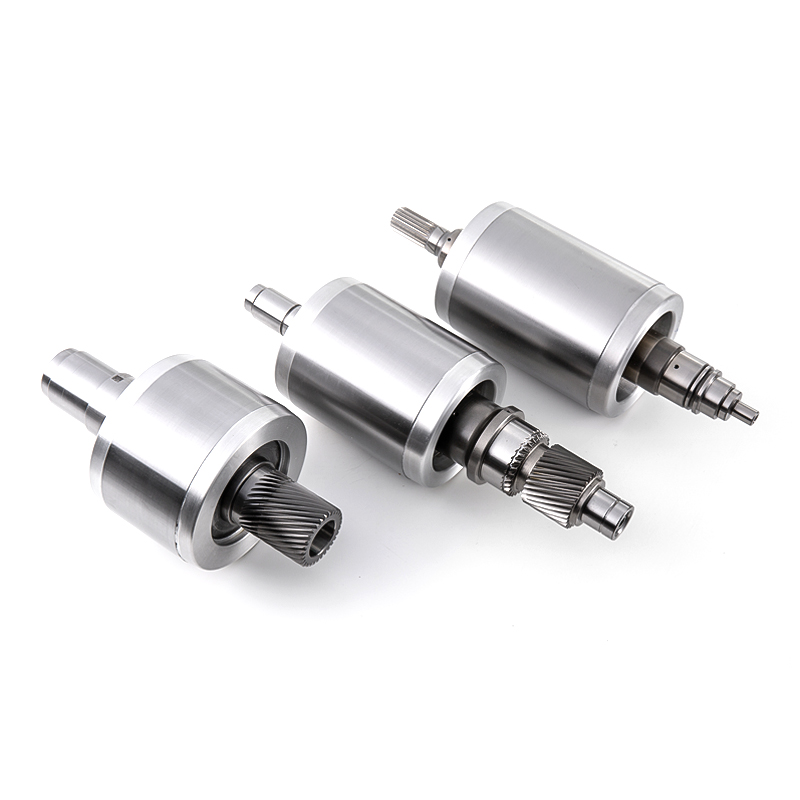

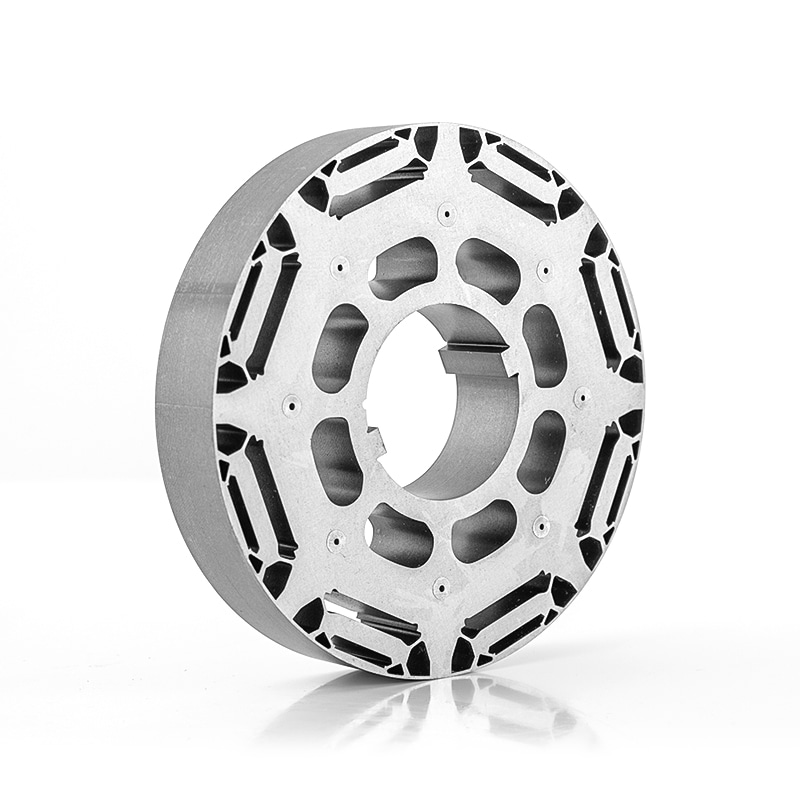

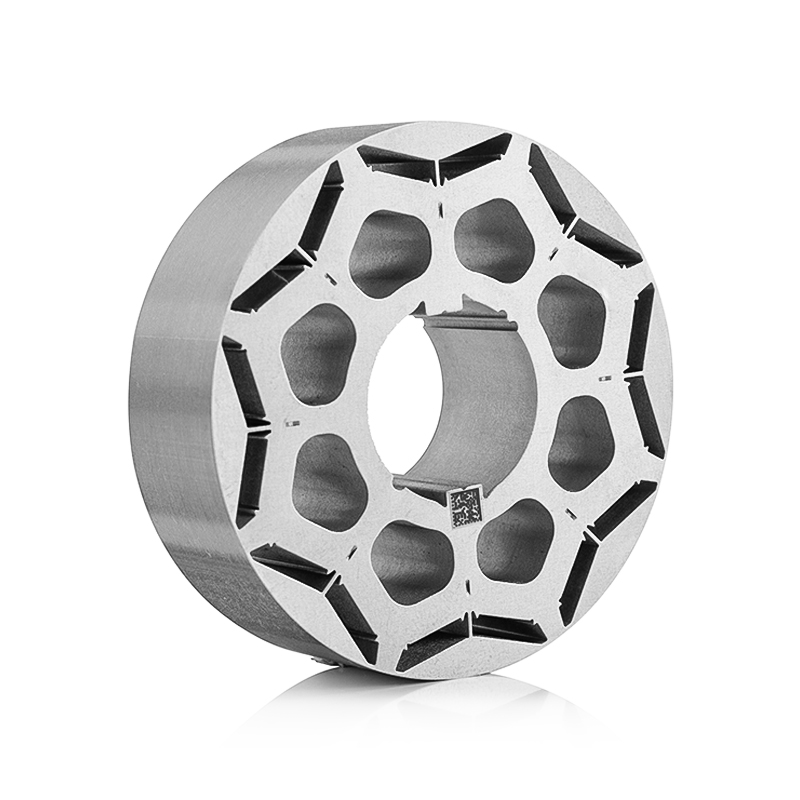

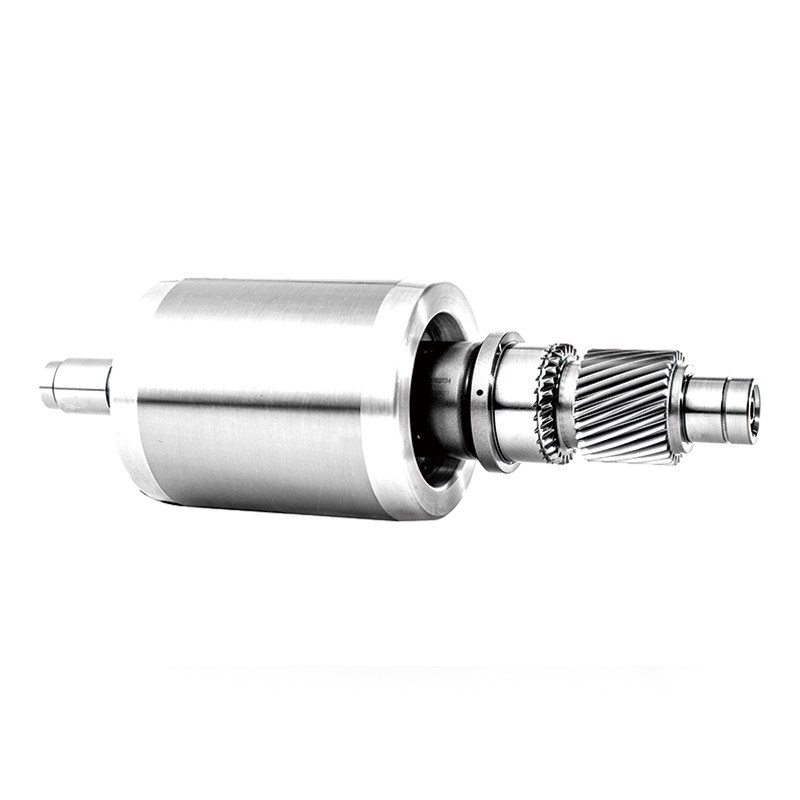

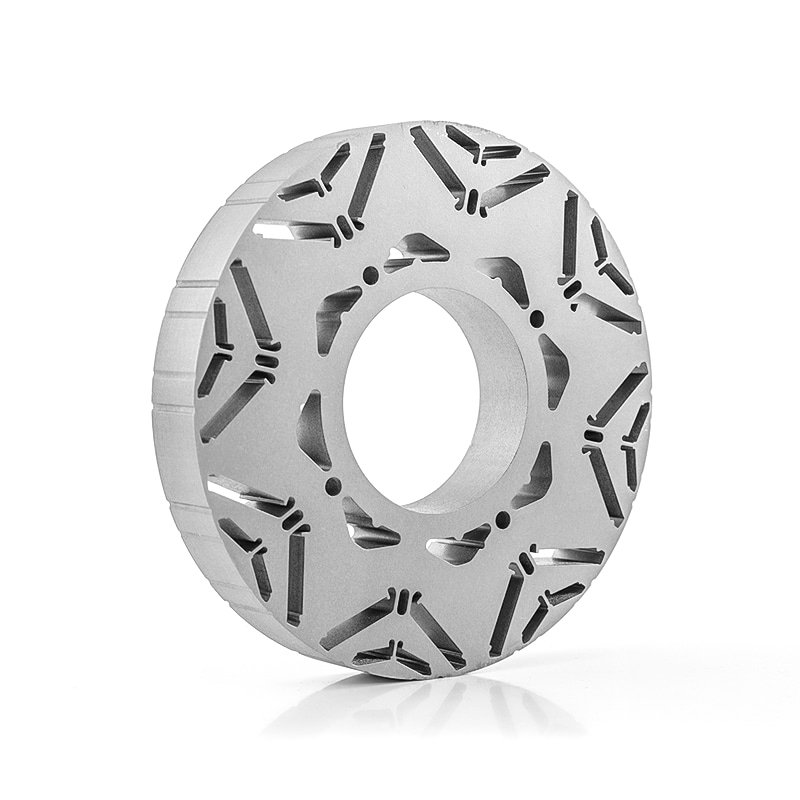

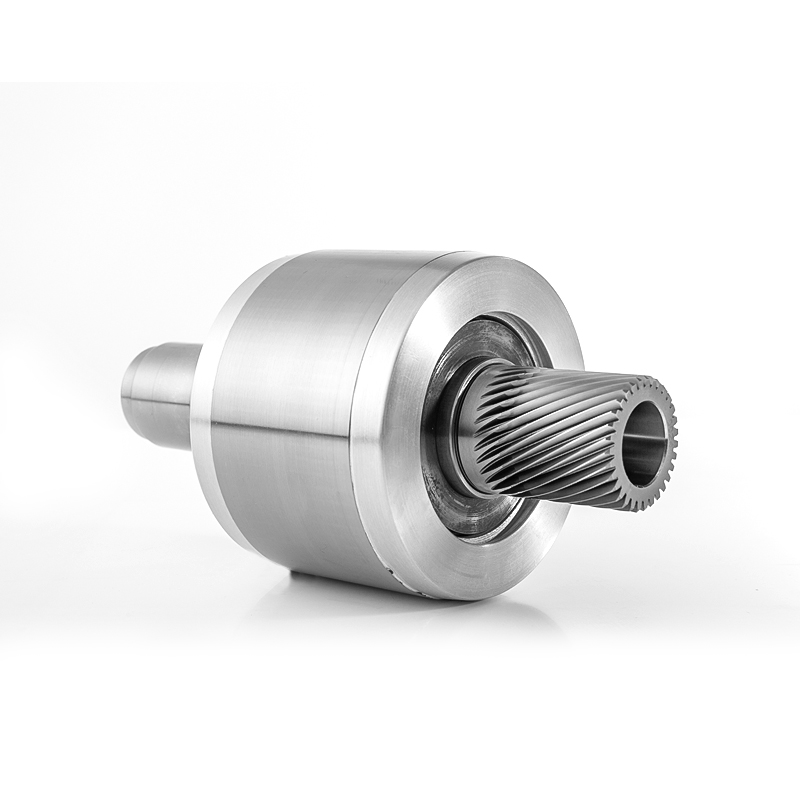

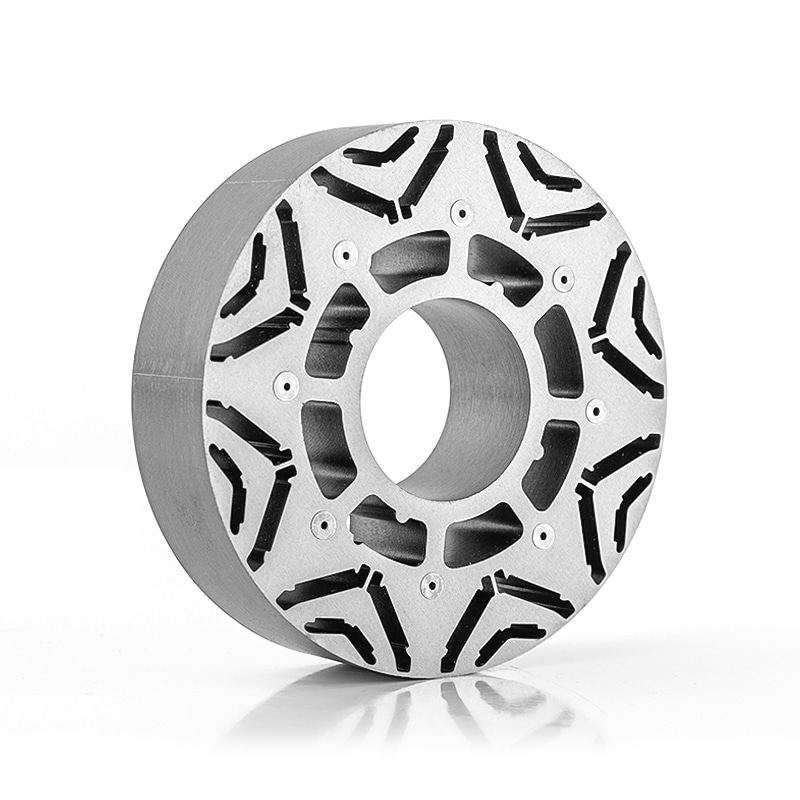

The rotor shaft insertion and rotor core assembly is another vital stage in the manufacturing of electric motor cores. The rotor is the part of the motor that rotates inside the stator and interacts with the magnetic field to generate mechanical power. The rotor core consists of laminated sheets, just like the stator, and it must be carefully assembled to ensure smooth operation. The rotor shaft, which serves as the central axis around which the rotor rotates, is inserted into the core during the assembly process. This step must be performed with extreme precision, as any misalignment of the shaft can lead to vibration, reduced motor efficiency, or even motor failure. The shaft is typically made of high-strength steel and must be inserted into the rotor core in a way that allows it to rotate freely without any resistance or friction. At Zhejiang Jufeng Technology Co., Ltd., we use high-precision equipment to ensure that the rotor shaft is aligned perfectly within the rotor core, minimizing any mechanical stresses that could affect motor performance. In some cases, permanent magnets are incorporated into the rotor core to enhance its magnetic properties. These magnets are carefully positioned and secured in place to ensure that the magnetic field generated by the rotor interacts efficiently with the stator. This assembly process is crucial in optimizing the motor’s performance, especially in terms of torque generation and energy efficiency. The rotor assembly must also undergo rigorous quality control checks to ensure that there are no defects in the shaft or core, and that all parts fit together seamlessly.
