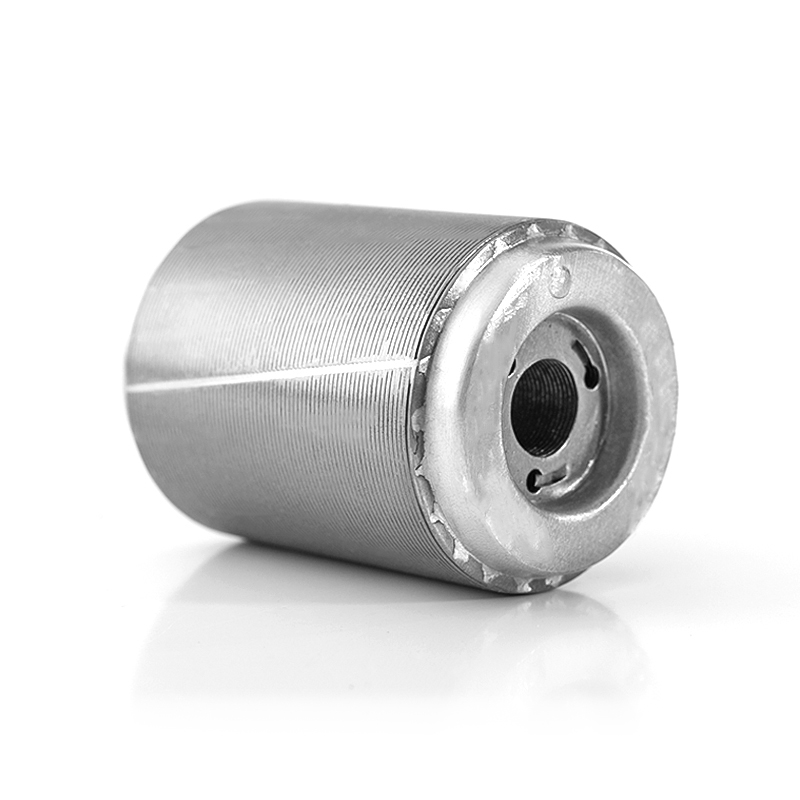

Home Appliance Motor Stator and Rotor Core Suppliers

1. The Foundation of Materials: The Performance Choice and Evolution of Silicon Steel Sheets
The core is not made of ordinary iron; the choice of its material is a profound science. Currently, high-grade non-oriented silicon steel sheets are the absolute mainstream material for manufacturing high-performance Home Appliance Motor Stator and Rotor Cores. For Jufeng, which consumes up to 150,000 tons of silicon steel annually, a deep understanding of materials is the cornerstone of our competitiveness.
Key Performance Indicators:
Iron Loss (Iron Loss): This is the most important indicator for measuring the quality of silicon steel sheets, measured in W/kg (watts per kilogram). The lower the iron loss, the smaller the energy loss (heat generation) caused by hysteresis and eddy current effects in the alternating magnetic field, and the higher the motor efficiency. High-efficiency energy-saving appliances (such as air conditioners and inverter washing machines meeting new energy efficiency standards) must use high-grade silicon steel with low iron loss. Zhejiang Jufeng Technology Co., Ltd. have established stable cooperative relationships with top-tier steel suppliers and implemented a strict incoming inspection system to ensure every coil of material meets the requirements of high-end manufacturing.
Magnetic Induction (Magnetic Induction): The unit is T (Tesla). The higher the magnetic induction, the less excitation current is needed to generate a magnetic field of the same strength, allowing the motor to be more compact and have a higher power density. Our R&D team uses precise magnetic circuit simulation to optimize designs for customers, finding the optimal balance between magnetic induction and iron loss to achieve the best configuration of performance and cost.
Thickness and Coating: Common thicknesses are 0.35mm, 0.5mm, etc. Thinner silicon steel sheets can effectively reduce eddy current losses but pose extreme challenges to stamping and lamination processes. The surface insulation coating is crucial for suppressing interlaminar eddy currents; we focus on environmentally friendly, harmless coating materials with excellent insulation properties to ensure the overall performance of the core.
Development Trends and Jufeng's Practice:
To meet increasingly stringent global energy efficiency regulations, home appliance manufacturers' requirements for the grade of silicon steel sheets are constantly increasing. Leveraging strong R&D capabilities, Jufeng has widely applied various high-grade silicon steels (such as 35W300, 50W470, etc.) from the 35 series to the 50 series to meet the demand for high-efficiency motors from top-tier domestic and international customers like BYD, Grundfos, and Inovance. We are not only users of materials but also innovators in application. By participating in the formulation of national and group standards (such as GB/T 21205-2022 and the "Technical Specifications for Motor Lamination and Core"), we are actively promoting the advancement of industry material application standards.

2. The Essence of Process: Stamping, Lamination, and Core Manufacturing Technologies
Transforming silicon steel coils into precise, low-loss Home Appliance Motor Stator and Rotor Cores relies on a series of precision manufacturing processes. Jufeng possesses internationally advanced production facilities and continues to innovate in processing technologies, supporting equipment transformation, and mold and tooling improvement, having applied for over 70 patents.
Precision Stamping: This is the core process. We use self-developed high-precision multi-station progressive dies on high-speed punching presses. The accuracy, lifespan, and stability of the molds directly determine the burr size, dimensional consistency, and production efficiency of the laminations. Controlling burrs to the micron level is a prerequisite for ensuring low loss and low noise in the core, and it is a concentrated expression of our technology and experience.
Self-Lamination (Self-Lamination): The production of modern high-end Home Appliance Motor Stator and Rotor Cores commonly uses the self-lamination technology we excel in. By designing and punching special bumps (or slots) on the laminations during stamping, the laminations can be precisely interlocked to form a solid integral core. This process eliminates traditional welding or riveting, avoids thermal stress and material performance damage, and ensures the integrity and consistency of the magnetic circuit. Our technology ensures extremely high stacking factors and integrity, providing customers with superior stator and rotor products.
Heat Treatment and Dynamic Balancing: For high-end applications, Zhejiang Jufeng Technology Co., Ltd. provide professional annealing services to eliminate stamping stress, restore the optimal magnetic properties of the silicon steel, and further reduce iron loss. For high-speed rotors, our dynamic balancing equipment ensures smooth operation, meeting the stringent requirements for ultra-quiet and highly reliable motors from customers like ZIEHL-ABEGG and ABB.
Our advantage lies in combining advanced equipment with independent process innovation, building an integrated precision manufacturing system from mold design, precision stamping, self-lamination to post-processing, ensuring every Home Appliance Motor Stator and Rotor Core has excellent quality and consistency.

3. The Trend of the Future: Adapting to the Development Trends of Smart and High-Efficiency Home Appliances
The Home Appliance Motor Stator and Rotor Core industry is rapidly evolving alongside the upgrading of end products. Jufeng focuses on the stator and rotor core industry for drive motors, promoting industry technological progress with strong independent innovation capabilities.
Inverter Technology Drives Demand for High Efficiency and Energy Saving: Inverter home appliances have become the market mainstream, placing extremely high demands on the low loss and stability across a wide speed range of the core. This directly drives us to continuously deepen the application technology of high-grade silicon steel, optimize self-lamination design, and meticulously manage annealing processes to meet the needs of cutting-edge projects in cooperation with partners like CRRC and GLB Power.
Miniaturization, Intelligence, and Quietness: End products pursue being smaller, quieter, and smarter. This requires continuous improvement in motor power density and effective suppression of electromagnetic noise (caused by magnetostriction of the core). We address these challenges by optimizing magnetic circuit design, improving manufacturing precision, and innovating material applications. Our R&D lab is constantly testing new solutions aimed at providing the "heart" solution for the next generation of smart home appliances.
Industry Chain Collaboration and Standard Setting: Future competition is about industry chain collaborative innovation. Jufeng, as a trusted partner, often engages in Early Supplier Involvement (ESI) for co-design and development with customers. We work closely with customers like Hua Chuan Electric and Founder Motor to optimize designs from the source. Furthermore, as a participant in setting national standards, we translate practical experience into industry norms, which not only consolidates our reputable position in the industry but also reflects our responsibility and commitment to leading industry development.
Jufeng's Commitment: We are not just a supplier of Home Appliance Motor Stator and Rotor Cores, but also a technical partner to our customers. We are committed to providing comprehensive solutions from materials science, structural design, precision manufacturing to performance testing through continuous R&D and innovation, helping global customers seize opportunities in the smart and high-efficiency home appliance market.
