Water Pump Motor Stator And Rotor Core Suppliers

1. The Stator Core: Generating the Magnetic Foundation

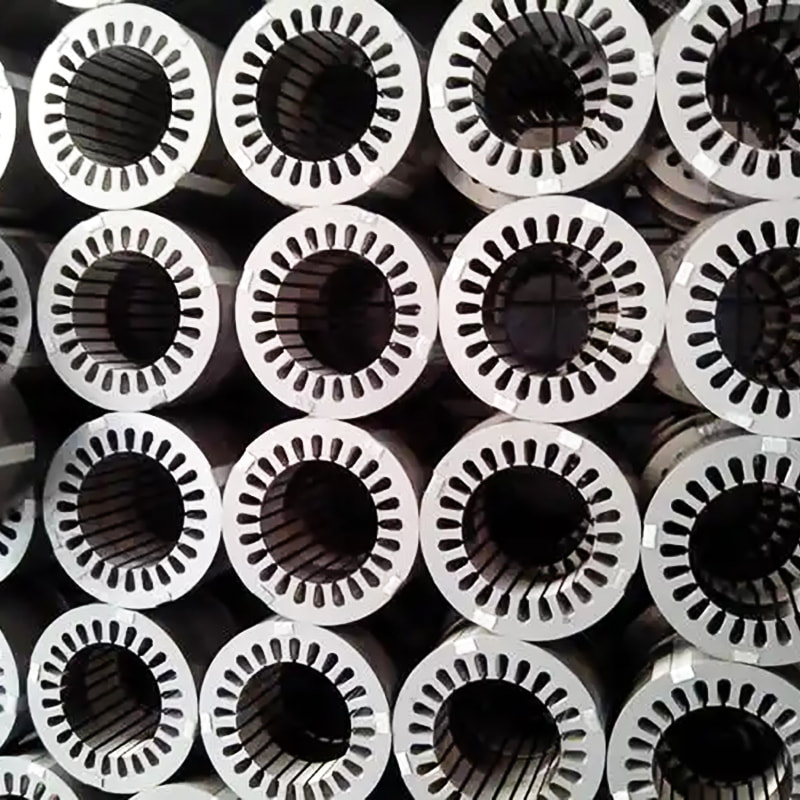

The stator serves as the stationary, foundational element of the motor, the immutable anchor from which all motion is generated. Its primary role is to generate a precise and powerful rotating magnetic field that drives the motor's operation. Crucially, the Water Pump Motor Stator And Rotor Core is not a solid piece of metal; such a design would be highly inefficient due to significant energy losses. Instead, it is a precision-engineered cylinder composed of hundreds, sometimes thousands, of thin laminated steel sheets, often referred to as laminations. This laminated construction is a critical design feature that Zhejiang Jufeng Technology Co., Ltd. has refined since 1998. By building the core from these insulated sheets, engineers drastically reduce eddy current losses. Eddy currents are parasitic loops of electrical current induced within the core by the changing magnetic field, which generate wasteful heat and reduce overall efficiency. The high-quality silicon steel laminations, precisely stamped and coated with a specialized insulation layer, effectively interrupt these current paths, enhancing efficiency and keeping operating temperatures lower and more stable, which is vital for the continuous duty cycle of water pumps.
Slots are punched with extreme precision along the inner circumference of these laminations to house the stator windings—coils of high-purity copper or aluminum wire. The precision of this stamping process, a core competency at Jufeng's 90,000 square meter production bases, ensures perfect alignment of the laminations, which is essential for optimal magnetic performance. When an electric current passes through these windings, they generate the required magnetic field. The quality of the electrical steel (often advanced silicon steel), the precision of the lamination stamping, and the integrity of the winding insulation all contribute to the stator's ability to create a strong, consistent magnetic field with minimal energy loss. Zhejiang Jufeng Technology Co., Ltd. leverages its status as a "National Specialized and Innovative Small Giant Enterprise" to invest in advanced manufacturing technologies and material science, ensuring that every stator core they produce meets the highest standards of efficiency and reliability for applications ranging from household water circulation to heavy industrial pumping systems.

2. The Rotor Core: Converting Magnetic Force into Mechanical Rotation
Nestled within the precise air gap of the stator is the rotor, the dynamic component that converts electromagnetic energy into the mechanical rotation that ultimately drives the pump's impeller. The rotor core is typically built from the same high-quality, laminated electrical steel as the stator, a symmetry that ensures magnetic compatibility and, once again, minimizes eddy currents to improve responsiveness and efficiency. The defining feature of the rotor core, and the heart of its function, is the array of conductors embedded within its laminations. For the vast majority of water pump applications, which demand robust, low-maintenance, and cost-effective solutions, this takes the iconic form of a squirrel-cage design. This ingenious construction consists of solid aluminum or copper bars inserted into the rotor slots and short-circuited at both ends by conductive end rings, forming a complete circuit that resembles a cage.
The principle of operation is pure electromagnetic induction. The rotating magnetic field produced by the stator cuts across the conductive bars of the stationary rotor. This dynamic action induces a current within them, which in turn generates a secondary magnetic field around the rotor core. The instantaneous interaction between the stator's magnetic field and the rotor's induced field creates a Lorentz force, resulting in a torque that causes the rotor core—and the motor shaft attached to it—to spin. The expertise of Zhejiang Jufeng Technology Co., Ltd. shines in its mastery of both cast aluminum and cast copper rotor technologies. While aluminum is common, Jufeng's advanced cast copper rotors offer significantly lower electrical resistance, leading to reduced energy losses and higher efficiency, a key innovation for modern high-performance pumps. The company's profound foundation in electric motors allows it to optimize the design of the rotor bars and end rings for specific torque and speed characteristics, ensuring that the motor seamlessly matches the hydraulic load of the pump it drives, thereby fulfilling its mission of "innovation-driven" product development.

3. Material and Design: The Pursuit of Peak Efficiency and Performance
The synergistic relationship between the Water Pump Motor Stator And Rotor Core is what ultimately defines motor performance. Their design and manufacturing is a constant, meticulous balancing act between magnetic efficiency, mechanical strength, thermal management, and cost-effectiveness. This pursuit of perfection is at the core of Zhejiang Jufeng Technology Co., Ltd.'s philosophy and is a key reason for its recognition as a "Zhejiang Province Industry Innovation and Excellence Demonstration Unit." The choice of material is the first and most paramount step. High-grade non-oriented silicon steel is favored for its excellent magnetic permeability, meaning it readily supports the formation and conduction of magnetic flux with minimal resistance, and its inherently high electrical resistance, which is the fundamental property that helps reduce eddy current losses when laminated.
The construction methods employed are equally crucial. At Jufeng's dedicated production bases for industrial and high-efficiency motors, the laminations are not merely stacked; they are tightly compressed under immense pressure and often bonded with specialized varnishes or welded at key points to form a rigid, unitary core. This rigidity is essential for minimizing vibration and acoustic noise—a critical quality-of-life feature for residential water pumps—and for maintaining the precise micron-level air gap between the stator and rotor. This air gap is one of the most critical tolerances in motor manufacturing; a smaller, consistent gap improves magnetic coupling and efficiency but demands extraordinary manufacturing precision to prevent physical contact during high-speed operation. Zhejiang Jufeng Technology Co., Ltd.'s unwavering commitment to "integrity" and "creation" is reflected in its investment in state-of-the-art stamping presses, precision dies, and automated assembly lines that ensure this precision is achieved consistently on a mass scale. By controlling the entire process from design to manufacturing, Jufeng guarantees that its stator and rotor cores are not just components, but optimized systems engineered for peak performance, longevity, and reliability in the most demanding applications, including electric vehicles and wind power, thus contributing to its noble mission of "social contribution" through energy savings.
